3. Remoying the DA adapter card

The adapter card is fixed with two self-tapping screws (4 x 5 mm) at the front aluminium profile, and with two screws (4 x 10 mm, metric) at the plate of the keyboard.

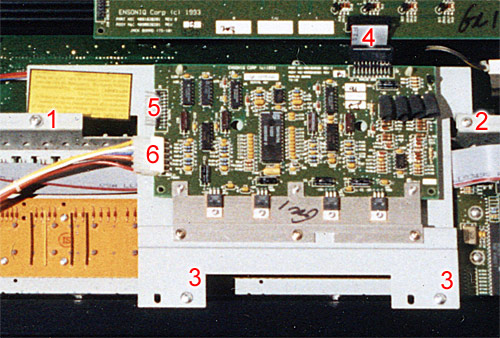

Legende

1. fixing of the adapter card at the plate of the keyboard. Attention: the card has to be fixed (when you join it together again) under the plate of the keyboard
2. same as 1
3. Screw connection of the adapter card in the front aluminium profile. self-tapping screw 4 x 5 mm
4. cable to the outs
5. data cable from the mainboard
6. power supply
